The example catalog: 212 raylib demos in jank

A map of the whole suite. Each example is one namespace under raylib-examples/src/raylib_examples/, runnable by a friendly bb <name> task or the underlying lein with-profile +<name> run --disable-sandbox. bb info prints this grouping live; this page adds the "how it's wired" recipe at the end.

Run one, list them, or reel through all of them:

bb <name>          # e.g. bb starfield   (opens a window)
bb examples        # flat list with descriptions
bb info            # the grouped cheat-sheet below
bb run-all [secs]  # every example, N seconds each (unattended)

core: window, input, cameras, files (47)

preview	`bb` name	shows
(none)	`screen-recording`	Record the window to an animated GIF
	`input-keys`	Steer a ball with the arrow keys
	`input-mouse`	A ball follows the mouse; click to recolor

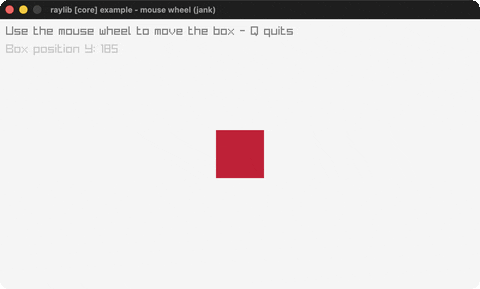

	`input-mouse-wheel`	Scroll a box with the mouse wheel
	`random-values`	A new random value every two seconds

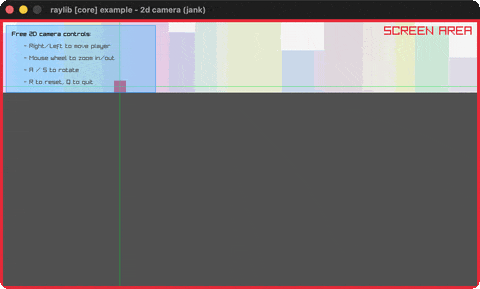

	`camera-2d`	A free 2D camera over a skyline
	`basic-window`	The minimal raylib window + text

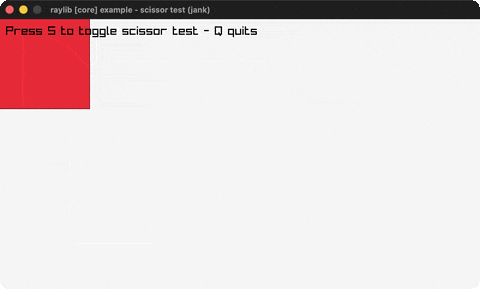

	`scissor-test`	A scissor rectangle reveals text
	`window-should-close`	Confirm-before-exit on window close

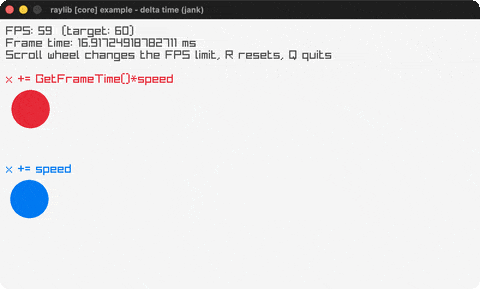

	`delta-time`	Delta-time vs per-frame movement

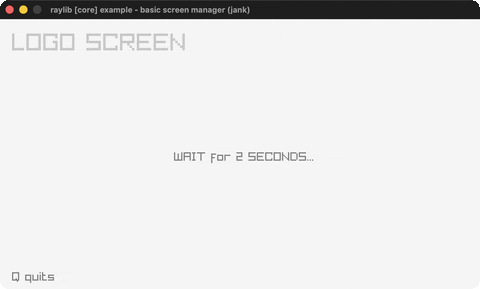

	`basic-screen-manager`	A LOGO/TITLE/GAMEPLAY/ENDING flow

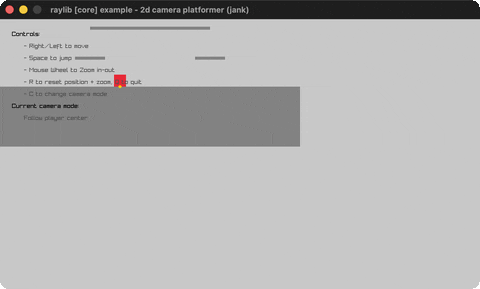

	`camera-2d-platformer`	A platformer with 5 camera-follow modes
(none)	`input-gestures`	Log detected mouse/touch gestures
(none)	`window-letterbox`	A fixed 640x480 game letterboxed on resize

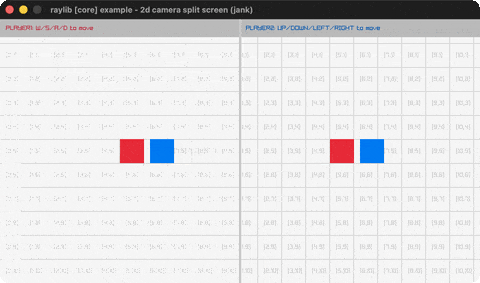

	`camera-2d-split-screen`	Two players, two cameras, split screen

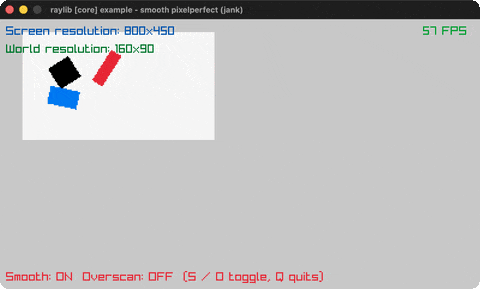

	`smooth-pixelperfect`	Sub-pixel smoothing of upscaled pixel art

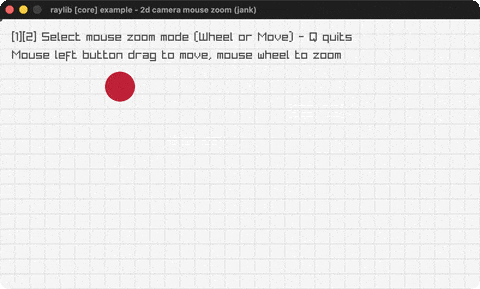

	`camera-2d-mouse-zoom`	Pan + zoom-to-cursor a 2D camera

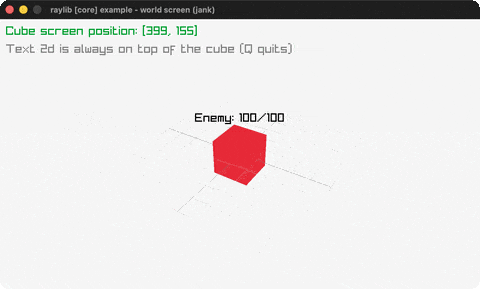

	`world-screen`	A 2D label tracking a 3D cube (GetWorldToScreen)
	`camera-3d`	A red cube on a grid through a fixed 3D camera

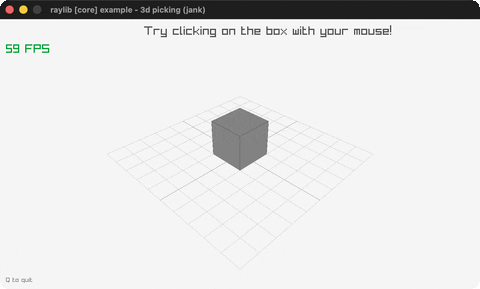

	`picking-3d`	Click a 3D box to pick it with a world-space ray
	`input-multitouch`	A ball at every active touch/mouse point

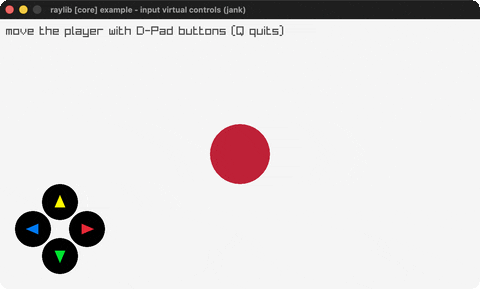

	`input-virtual-controls`	An on-screen D-pad moving a player circle
(none)	`window-flags`	Toggle window state flags live with a bouncing ball

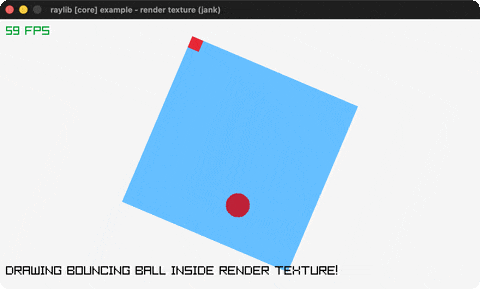

	`render-texture`	A ball bouncing inside a rotated off-screen render texture

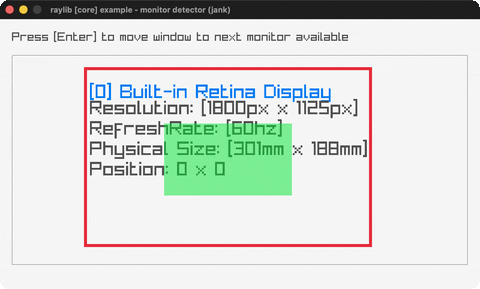

	`monitor-detector`	A scaled map of every attached monitor with its specs

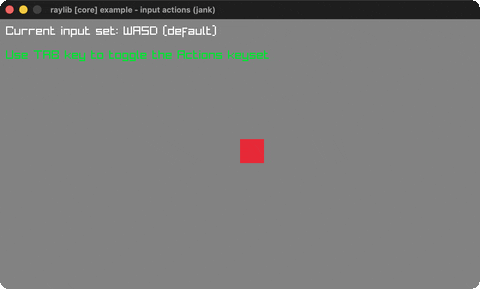

	`input-actions`	Remappable abstract actions (WASD/arrows) via a keyset map

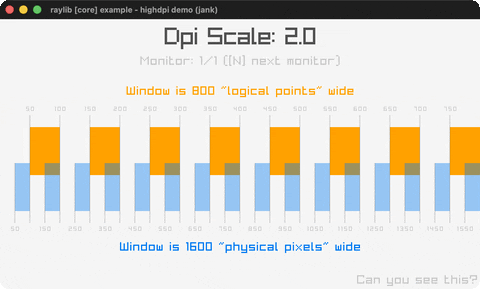

	`highdpi-demo`	Logical-points vs physical-pixels grids with live DPI scale
(none)	`highdpi-testbed`	A HighDPI overlay: grid, monitor/DPI info, crosshair

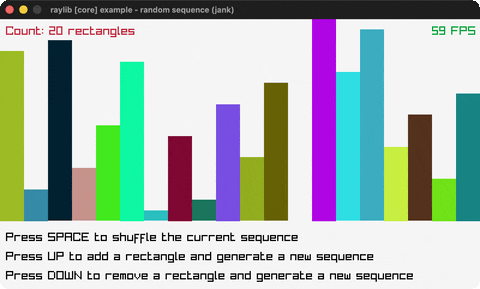

	`random-sequence`	Colored bars in a no-repeat LoadRandomSequence

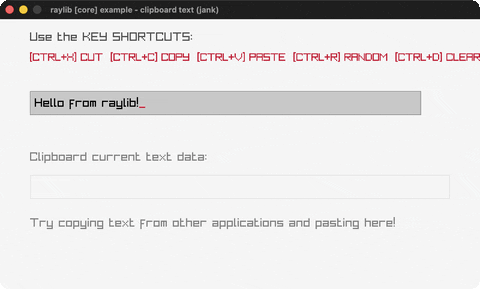

	`clipboard-text`	Type + cut/copy/paste with the system clipboard

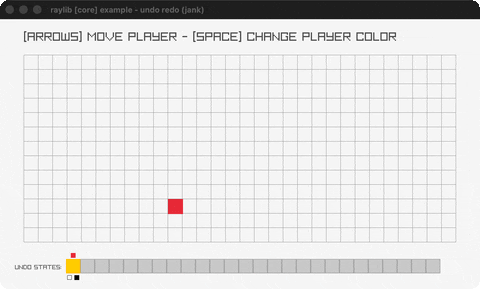

	`undo-redo`	A grid player with a 26-slot undo/redo ring buffer

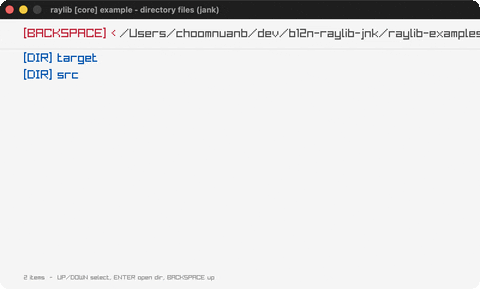

	`directory-files`	A keyboard file browser over the working directory
	`custom-logging`	A trace-log callback timestamps every raylib line

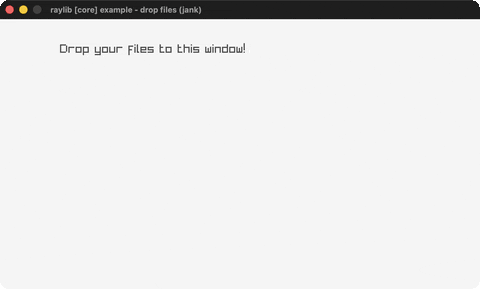

	`drop-files`	Drag files onto the window to list their paths

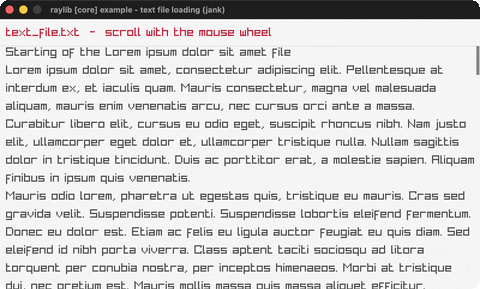

	`text-file-loading`	Load + word-wrap a text file, scroll it
	`compute-hash`	CRC32/MD5/SHA1/SHA256 + Base64 of typed text

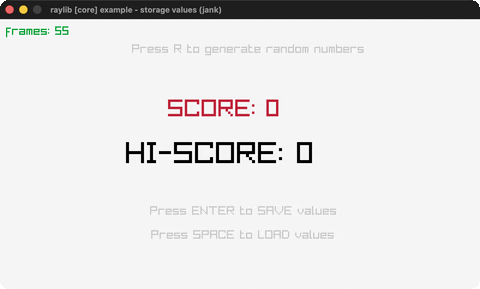

	`storage-values`	Save/load a score pair to a binary storage file

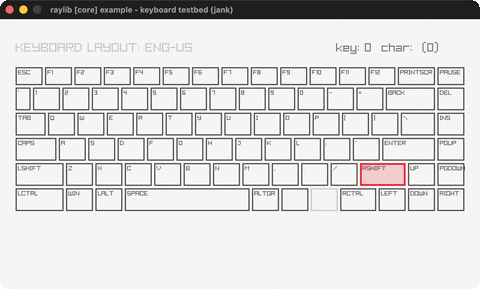

	`keyboard-testbed`	An on-screen ENG-US keyboard highlighting held keys
	`input-gestures-testbed`	A gesture dashboard with log, indicators and protractor

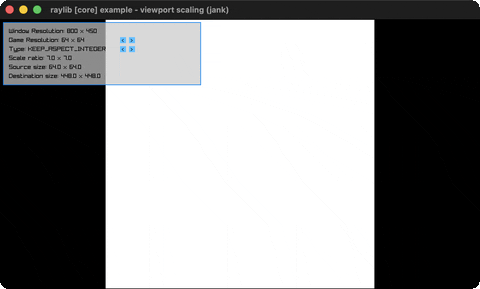

	`viewport-scaling`	A fixed game resolution scaled into a resizable window

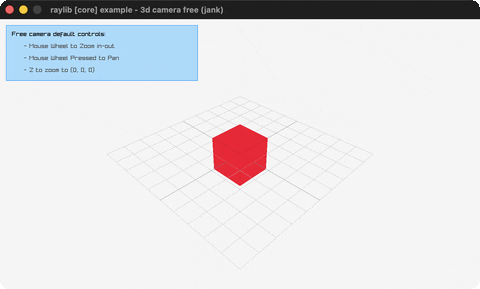

	`camera-3d-free`	A free-look 3D camera around a cube

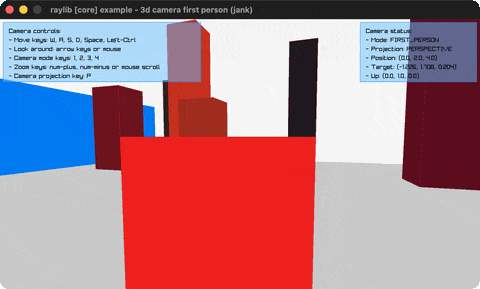

	`camera-3d-first-person`	Walk a yard of random columns in first person

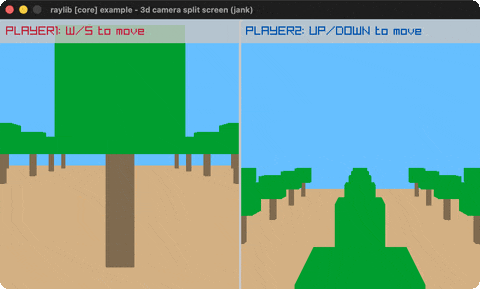

	`camera-3d-split-screen`	Two players, two 3D cameras, split screen
	`camera-3d-fps`	A physics FPS controller with head-bob and lean

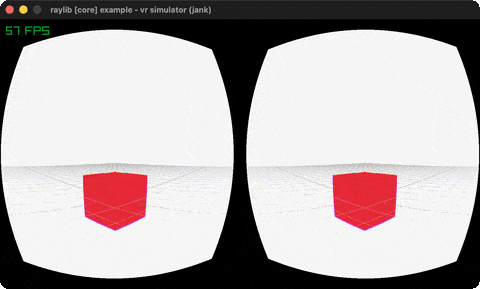

	`vr-simulator`	A 3D scene in stereo through a simulated Oculus Rift

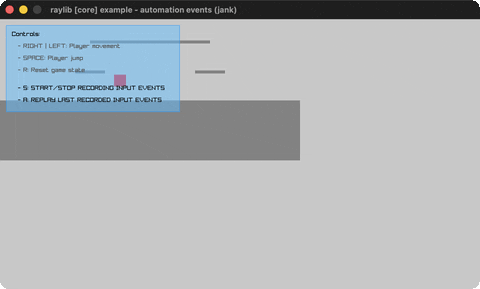

	`automation-events`	A platformer recording and replaying its own input
	`input-gamepad`	A live controller diagram: buttons/sticks/triggers lit

shapes: 2D drawing, easing, rlgl (41)

preview	`bb` name	shows

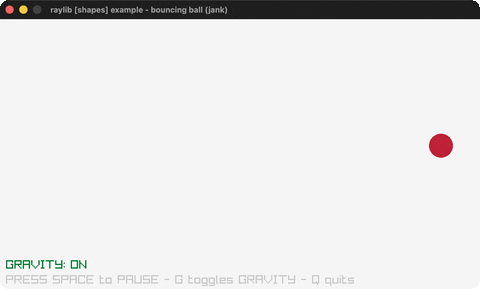

	`bouncing-ball`	A ball bouncing with optional gravity

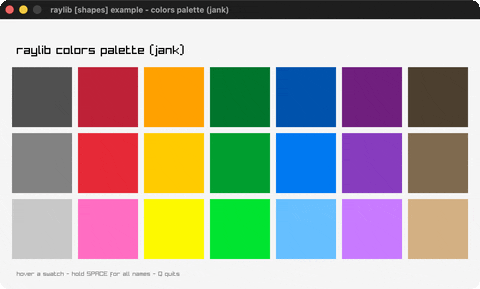

	`colors-palette`	Every named raylib color in a grid
	`starfield`	A perspective starfield flying at you

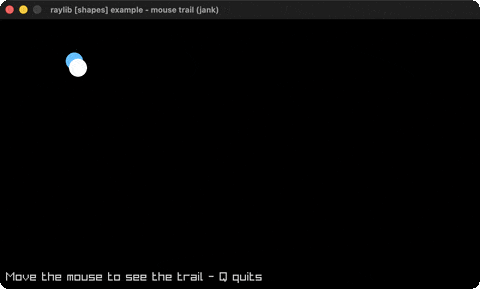

	`mouse-trail`	A fading trail follows the cursor
	`logo-anim`	The raylib logo assembling itself

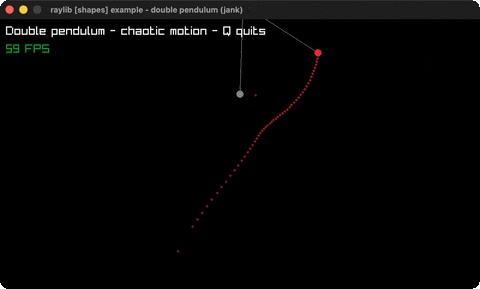

	`double-pendulum`	Chaotic double-pendulum motion + trail

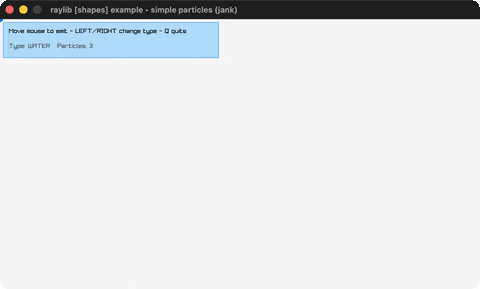

	`particles`	Water / smoke / fire particle effects
	`collision-area`	AABB collision between a bouncing + mouse box

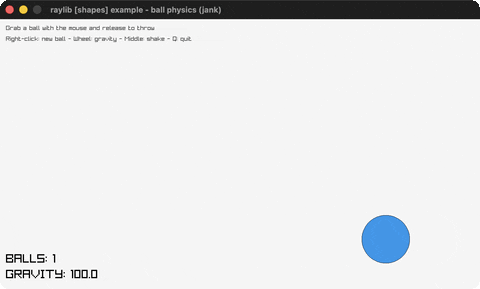

	`ball-physics`	Grab and throw balls under gravity

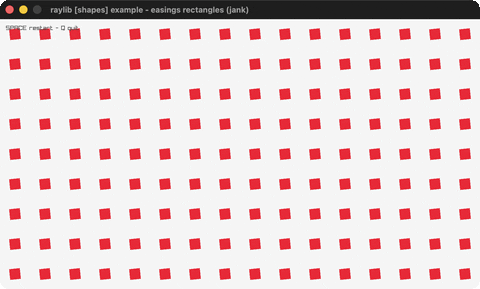

	`easings-rectangles`	A grid shrinks and spins via easing fns

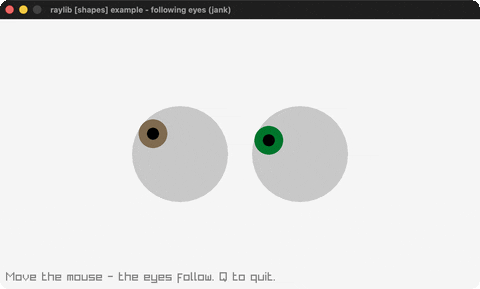

	`following-eyes`	Two eyes track the mouse cursor

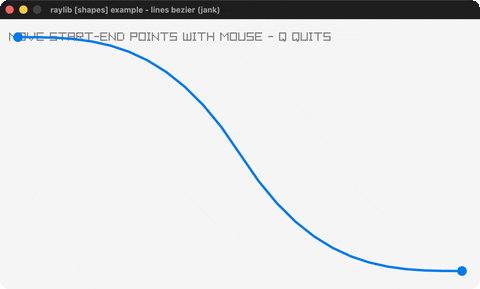

	`lines-bezier`	Drag endpoints to reshape a Bezier curve

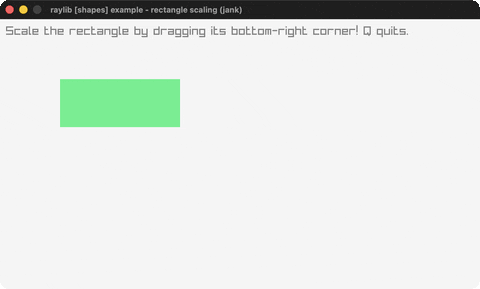

	`rectangle-scaling`	Resize a rectangle by its corner

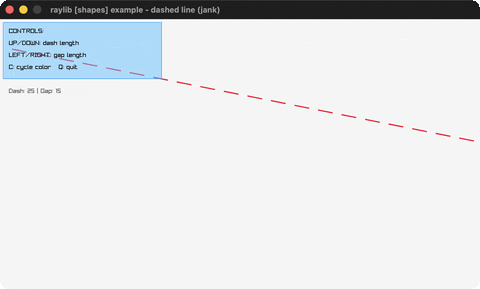

	`dashed-line`	A dashed line follows the mouse

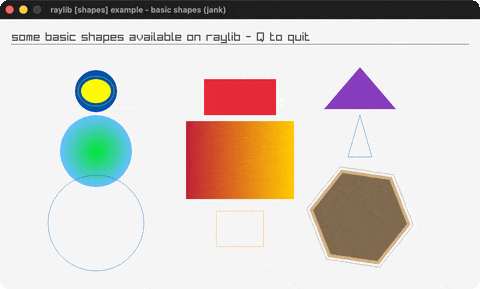

	`basic-shapes`	A gallery of raylib's basic shapes
	`logo-raylib`	The raylib logo from rectangles + text

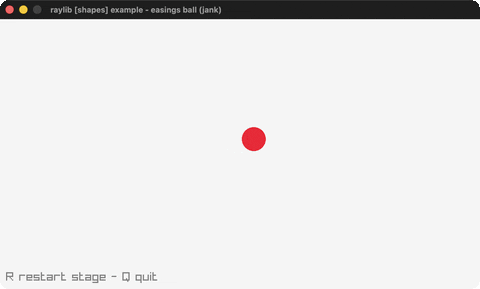

	`easings-ball`	A ball animated through easing stages
	`easings-box`	A box animated through five easing stages

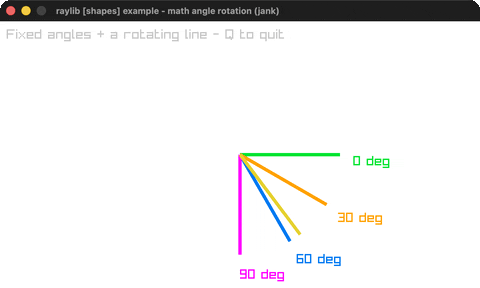

	`math-angle-rotation`	Fixed-angle lines + a spinning line

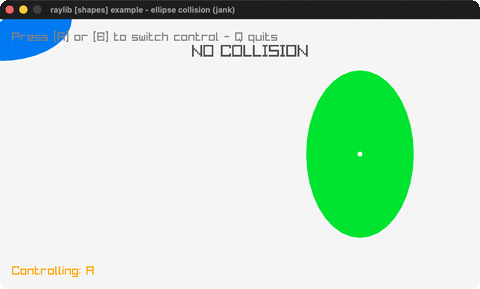

	`ellipse-collision`	Overlap test between two ellipses

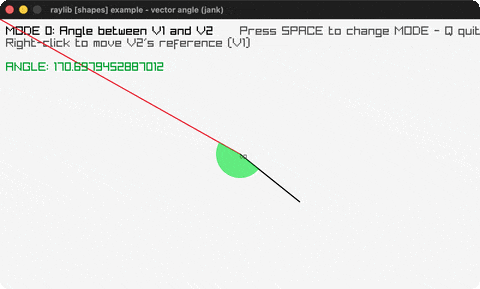

	`vector-angle`	Two ways to measure an angle

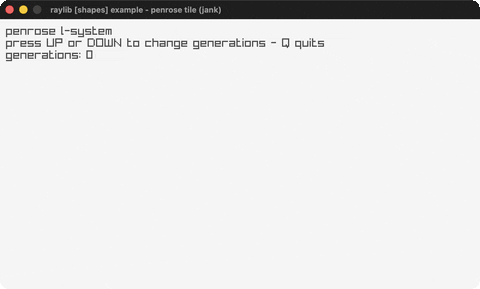

	`penrose-tile`	A Penrose tiling grown with an L-system
	`digital-clock`	A live clock (digital + analogue modes)

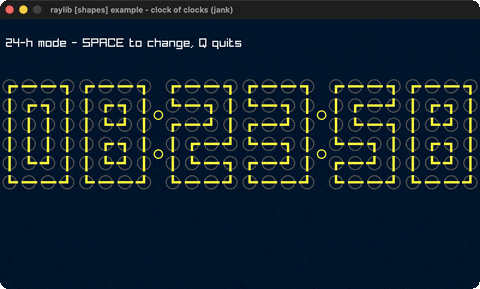

	`clock-of-clocks`	Digits drawn from grids of little clocks

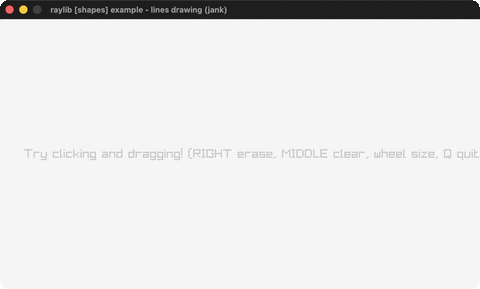

	`lines-drawing`	A paint canvas (RenderTexture)
	`easings-testbed`	An interactive testbed for all 28 easings

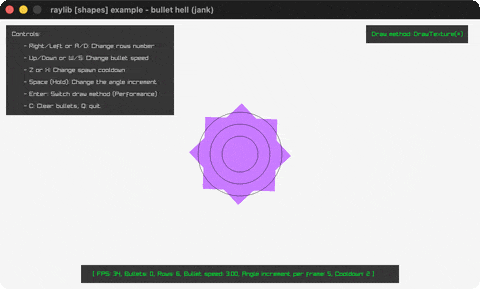

	`bullet-hell`	A magic circle spraying bullet spirals
	`ring-drawing`	A ring/annulus with adjustable angles

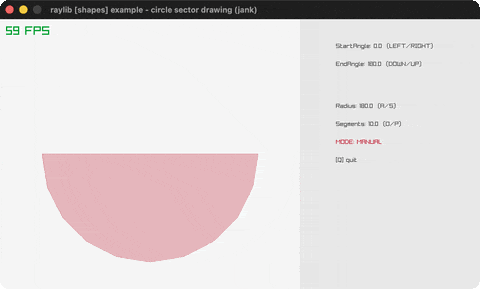

	`circle-sector-drawing`	A circle sector with adjustable angles

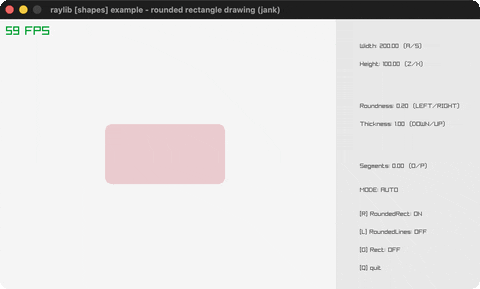

	`rounded-rectangle`	A rounded rectangle, size/roundness knobs

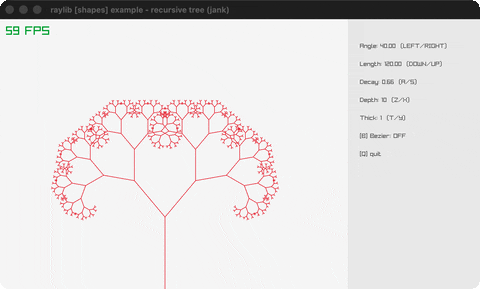

	`recursive-tree`	A binary fractal tree with live knobs
	`triangle-strip`	A rainbow triangle-strip fan

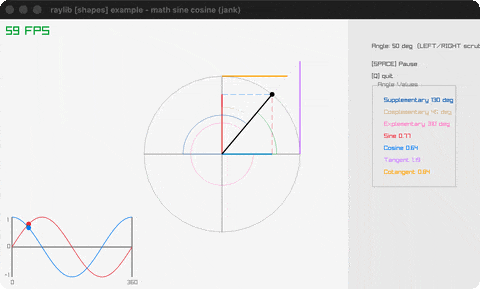

	`math-sine-cosine`	A live unit-circle trig visualization
	`hilbert-curve`	A rainbow Hilbert space-filling curve

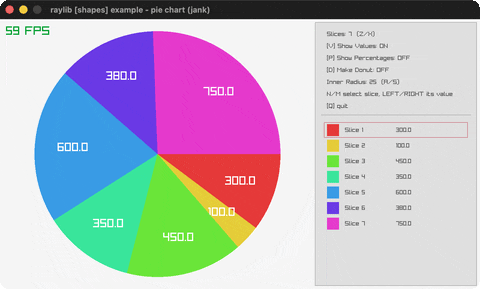

	`pie-chart`	An interactive pie chart with hover pop

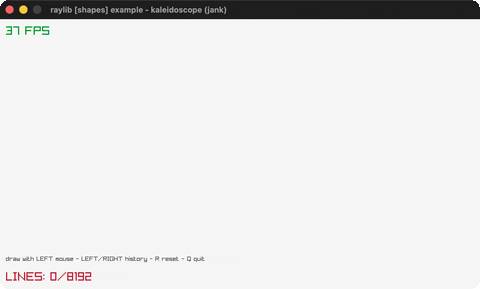

	`kaleidoscope`	Draw strokes mirrored with 6-fold symmetry

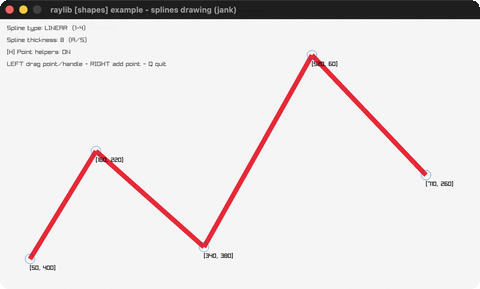

	`splines-drawing`	Draggable spline points, 4 spline types

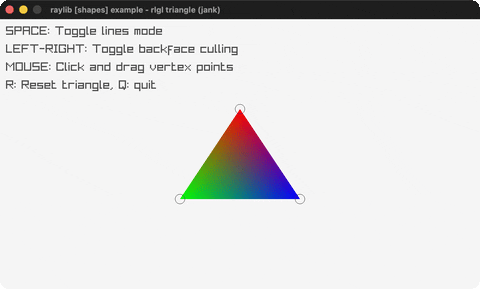

	`rlgl-triangle`	A rainbow triangle via rlgl immediate mode
	`rlgl-color-wheel`	An HSV color picker wheel via rlgl
	`top-down-lights`	2D lights casting shadow volumes off boxes

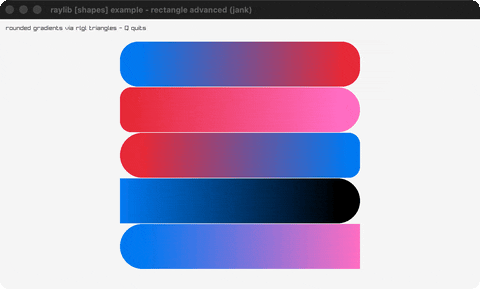

	`rectangle-advanced`	Rounded gradient rectangles via rlgl

text: fonts, unicode, layout (16)

preview	`bb` name	shows

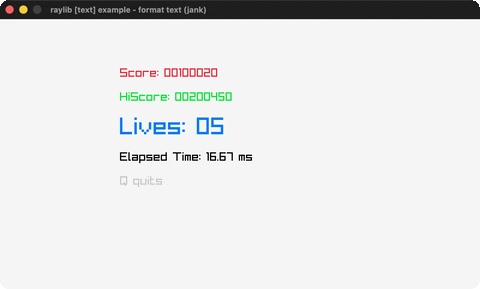

	`format-text`	Zero-padded score/time text readouts

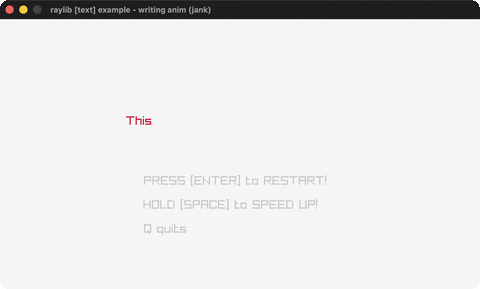

	`writing-anim`	A message types itself out

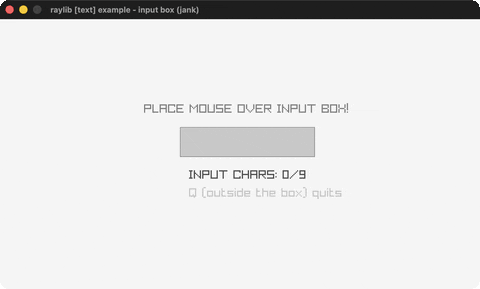

	`input-box`	A hover-to-type text input box

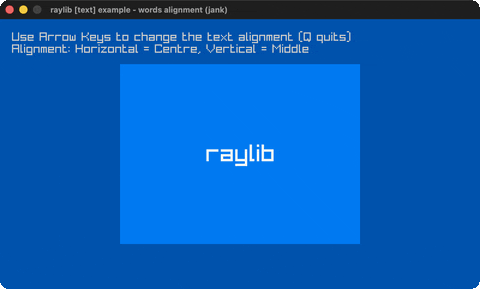

	`words-alignment`	Align a word inside a rectangle

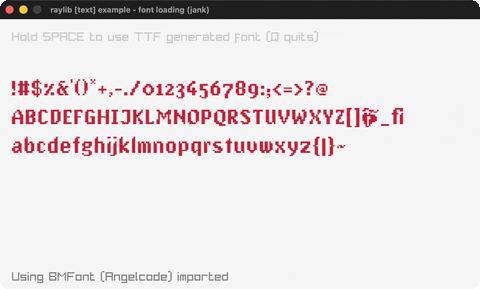

	`font-loading`	Load a BMFont and a TTF font (DrawTextEx)

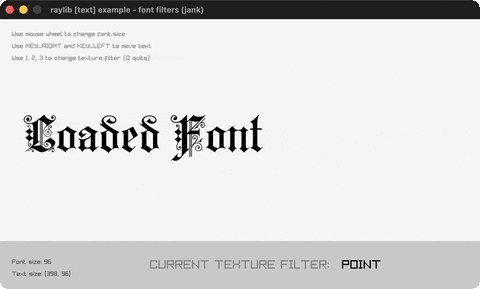

	`font-filters`	Scale a TTF word, switch texture filters
	`font-spritefont`	Three colored sprite fonts from PNG atlases
	`sprite-fonts`	A gallery of raylib's eight bundled sprite fonts

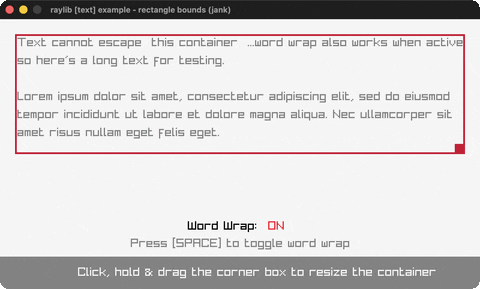

	`rectangle-bounds`	Word-wrapped text in a mouse-resizable container

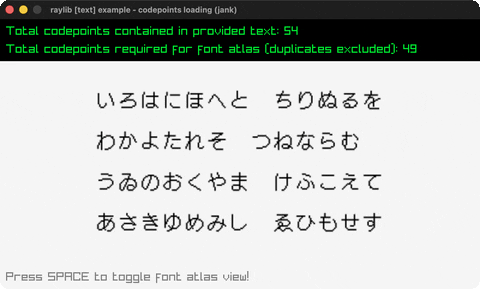

	`codepoints-loading`	Japanese text rasterized to a minimal TTF font atlas
	`unicode-ranges`	Grow a multilingual font atlas by unicode range

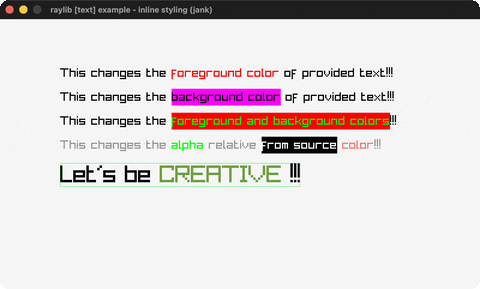

	`inline-styling`	Text with inline color style tags
	`unicode-emojis`	Click emojis for multilingual speech bubbles
	`text-3d-drawing`	A bitmap font as textured quads in 3D, one span waving

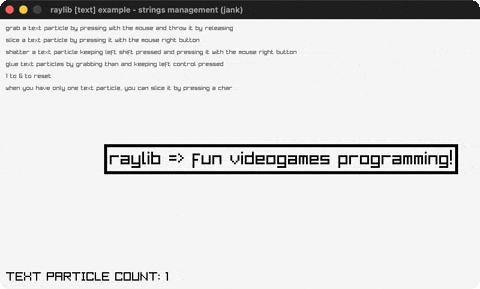

	`strings-management`	Drag/slice/shatter/glue text; 1-6 run TextTo* fns

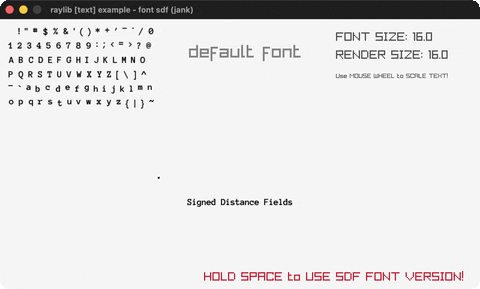

	`font-sdf`	Bitmap vs SDF font scaling, the SDF drawn through a shader

textures: images, sprites, render textures (32)

preview	`bb` name	shows
(none)	`clipboard-image`	Paste images from the system clipboard

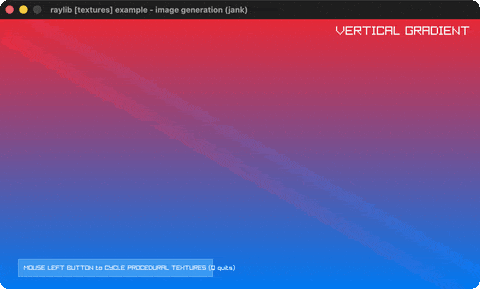

	`image-generation`	Nine procedural textures (gradients/noise)
	`logo-texture`	The raylib logo loaded from a PNG file
	`sprite-animation`	Scarfy runs: 6-frame spritesheet animation
	`srcrec-dstrec`	Rotate + scale a sprite frame (DrawTexturePro)

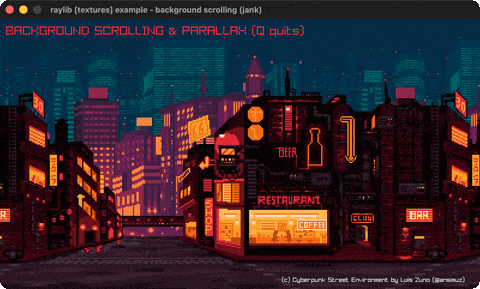

	`background-scrolling`	Parallax-scrolling cyberpunk street layers
	`image-loading`	LoadImage (RAM) then LoadTextureFromImage (VRAM)

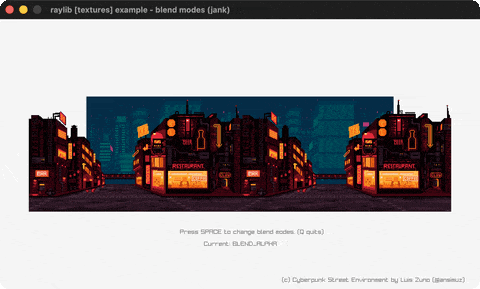

	`blend-modes`	Four 2D blend modes over the cyberpunk street

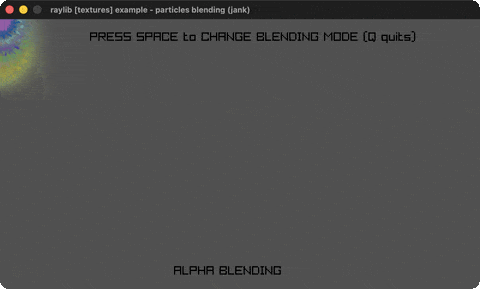

	`particles-blending`	Spark particles trail the mouse (alpha/additive)

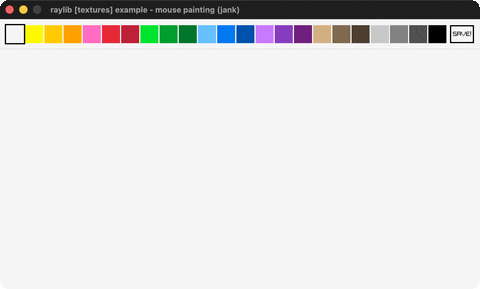

	`mouse-painting`	A paint program on a RenderTexture canvas
	`sprite-button`	A 3-state sprite button with a click sound

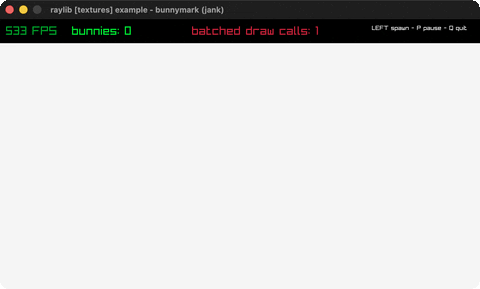

	`bunnymark`	The classic bunny-spawning batching benchmark
	`fog-of-war`	A tile map hidden by smooth fog of war
	`tiled-drawing`	Tile a texture pattern with scale/rotation/color
	`sprite-explosion`	Click to play a 5x5 explosion spritesheet + sound
	`sprite-stacking`	A voxel booth from 122 stacked rotated slices

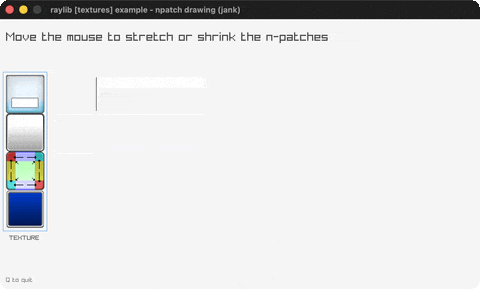

	`npatch-drawing`	Stretchable 9-patch / 3-patch UI panels

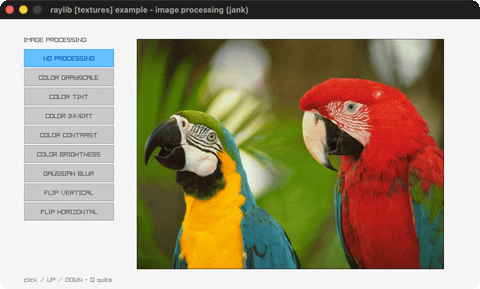

	`image-processing`	Nine CPU image filters via pointer-taking Image* APIs

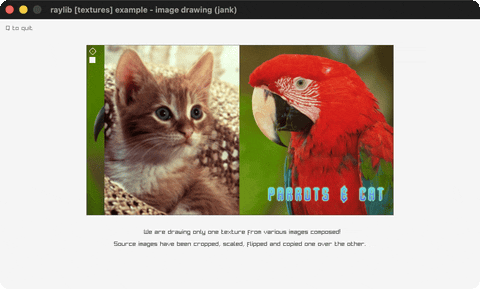

	`image-drawing`	One texture composed from several CPU images

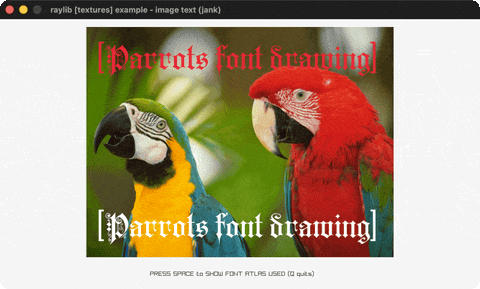

	`image-text`	Text baked into an image with a TTF font

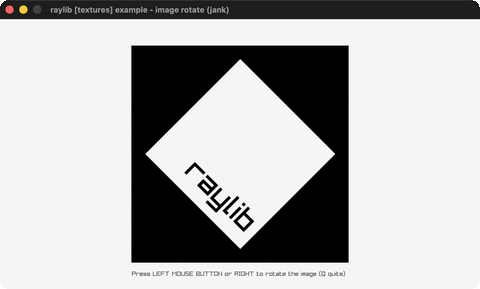

	`image-rotate`	The logo rotated +45/+90/-90 in CPU memory

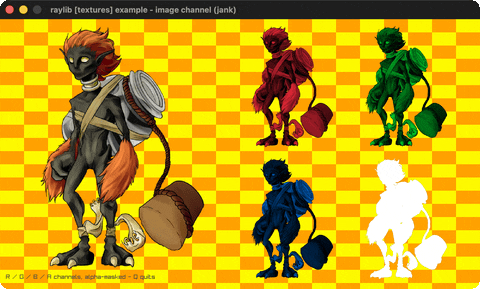

	`image-channel`	RGBA channels split + alpha-masked
	`image-kernel`	Sharpen/sobel/gaussian convolution kernels

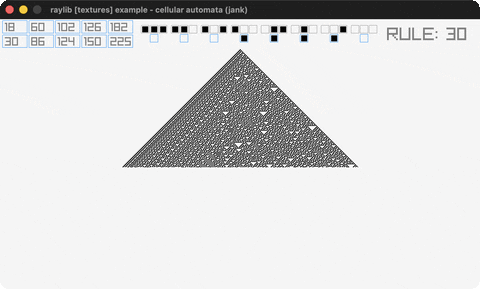

	`cellular-automata`	Wolfram rule cellular automaton, editable rule

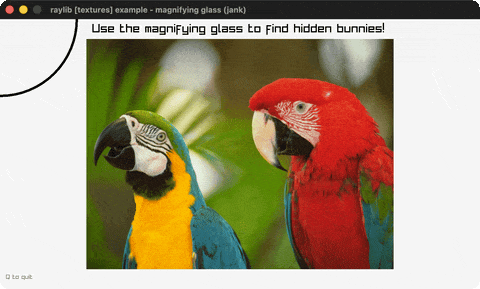

	`magnifying-glass`	A circular magnifier revealing hidden bunnies
	`to-image`	Round-trip an image VRAM<->RAM (LoadImageFromTexture)

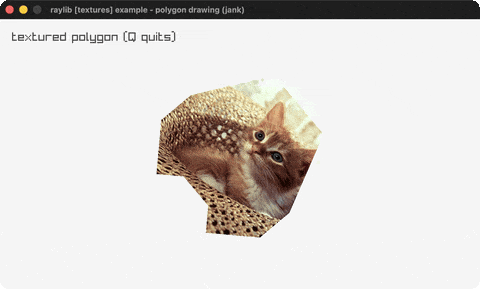

	`polygon-drawing`	A cat texture mapped onto a spinning polygon

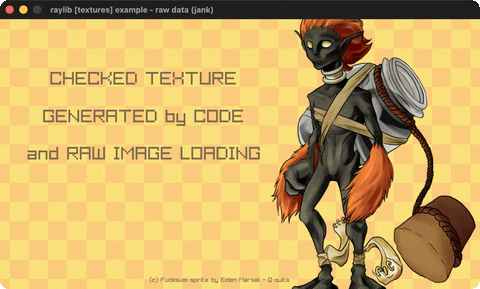

	`raw-data`	A .raw pixel dump + a code-generated checkerboard

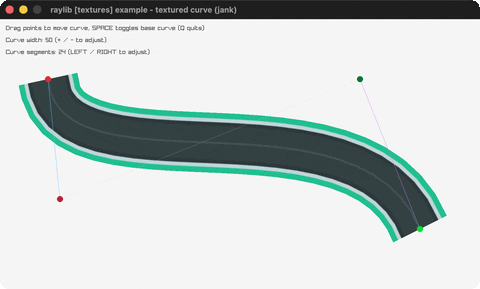

	`textured-curve`	A road texture swept along a draggable Bezier

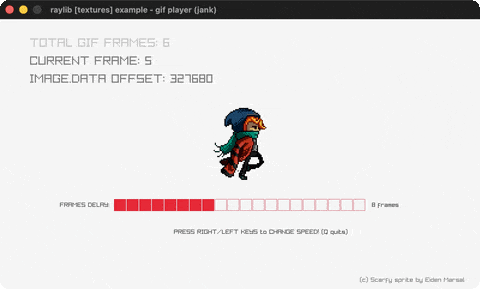

	`gif-player`	An animated GIF streamed frame-by-frame to a texture

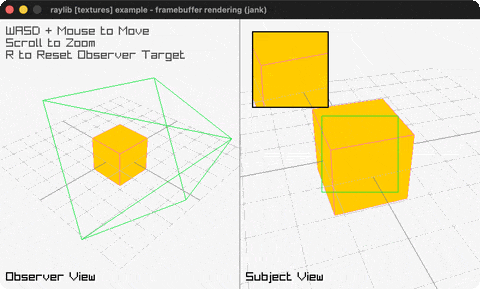

	`framebuffer-rendering`	An observer camera watching a subject camera + frustum
	`screen-buffer`	The classic DOS fire effect in a palette-indexed buffer

models: meshes, 3D, OBJ/GLB (29)

preview	`bb` name	shows
	`geometric-shapes`	3D cubes/spheres/cylinders/capsules on a grid

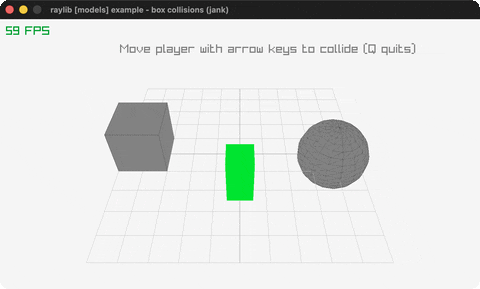

	`box-collisions`	A player cube colliding with 3D obstacles

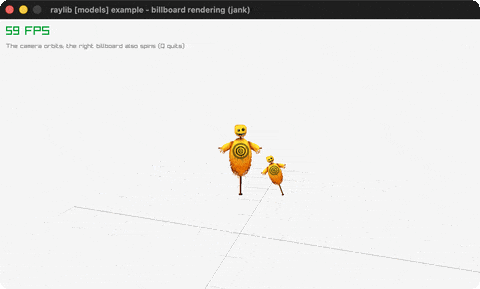

	`billboard-rendering`	Camera-facing billboards + an orbiting camera
(none)	`waving-cubes`	3375 rainbow cubes waving in 3D

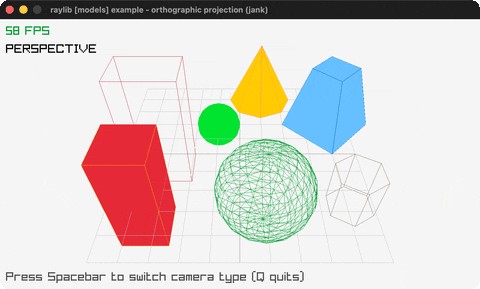

	`orthographic-projection`	Toggle perspective vs orthographic camera

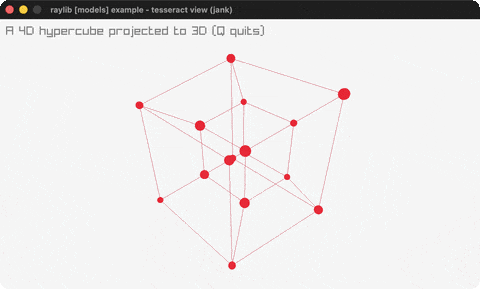

	`tesseract-view`	A rotating 4D hypercube projected to 3D

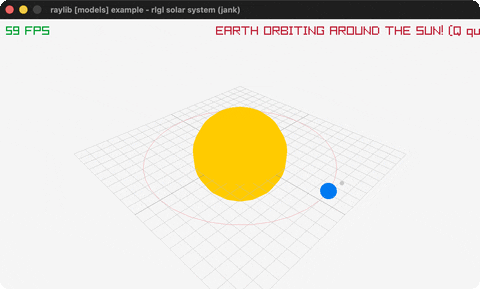

	`rlgl-solar-system`	Sun/Earth/Moon via the rlgl matrix stack

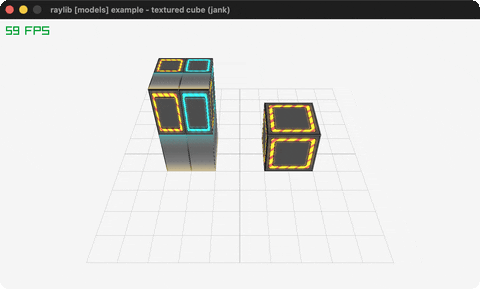

	`textured-cube`	Two rlgl textured 3D cubes from a shared atlas

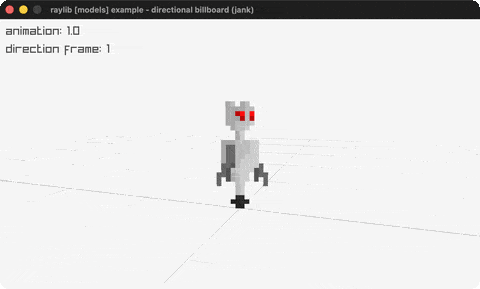

	`directional-billboard`	A sprite-sheet billboard that turns as the camera orbits

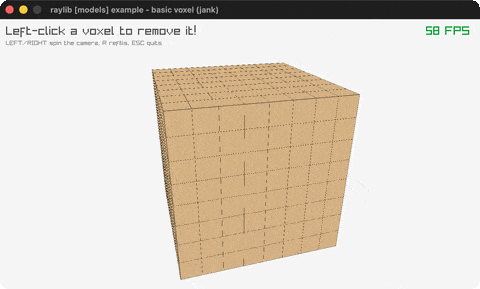

	`basic-voxel`	An 8x8x8 voxel grid; click to ray-pick and remove

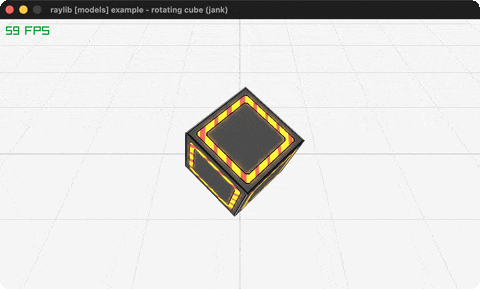

	`rotating-cube`	A textured cube spinning on a tilted axis (rlgl)

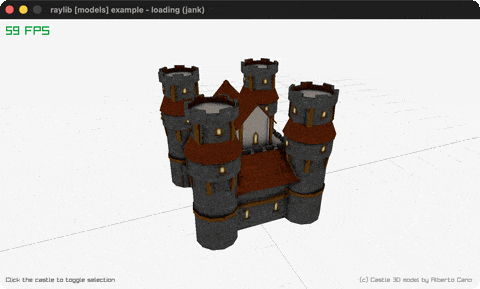

	`model-loading`	The castle OBJ model loaded from disk, ray-pick selection

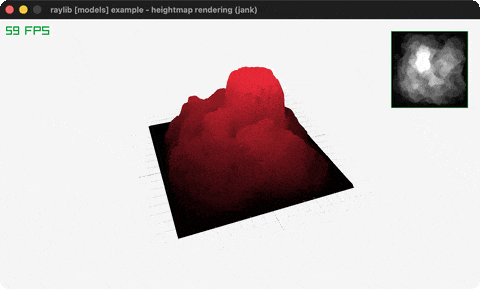

	`heightmap-rendering`	Terrain generated from a grayscale heightmap image
	`cubicmap-rendering`	A cube maze generated from a tiny black-and-white image

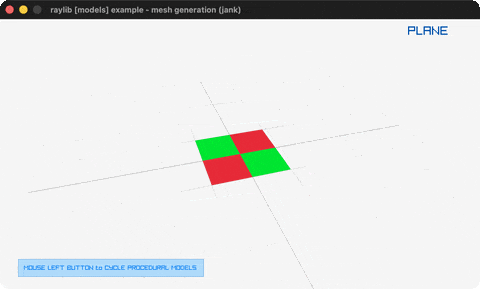

	`mesh-generation`	All nine procedural mesh generators, checked-textured
	`first-person-maze`	Walk a cubicmap maze in first person, with a radar

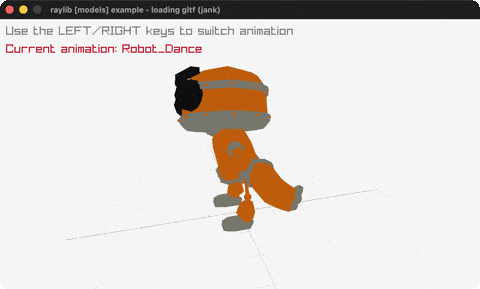

	`loading-gltf`	The animated glTF robot, switchable animations

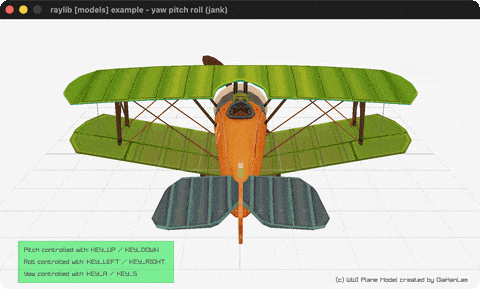

	`yaw-pitch-roll`	Fly a WWI plane through pitch/yaw/roll, easing level

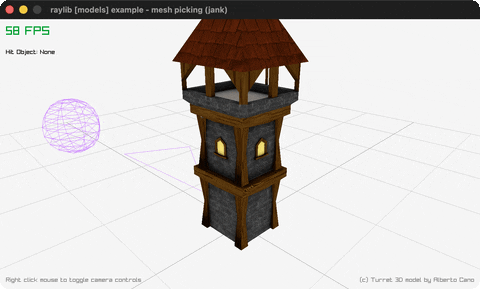

	`mesh-picking`	A mouse ray picks the closest quad/sphere/box/mesh

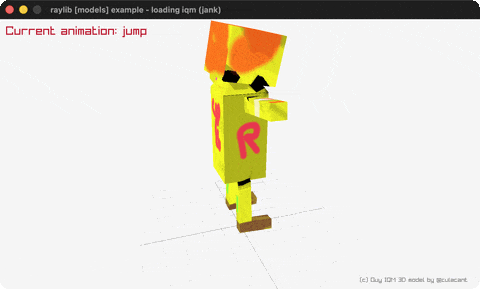

	`loading-iqm`	The classic IQM guy walking on loop

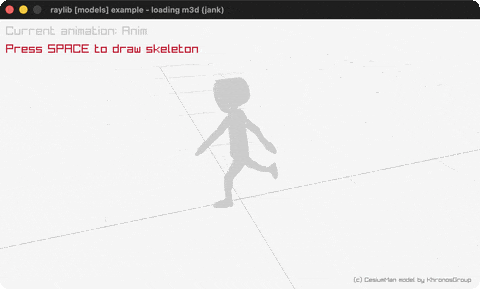

	`loading-m3d`	The Cesium Man in Model3D format, skeleton view on SPACE

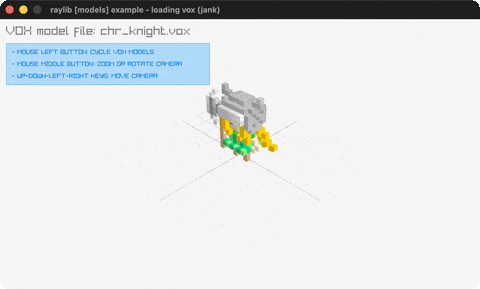

	`loading-vox`	Four MagicaVoxel models under a fly camera + voxel lighting
	`animation-timing`	The robot with a playback timeline + adjustable speed
	`bone-socket`	A hat, sword and shield riding the greenman's bones

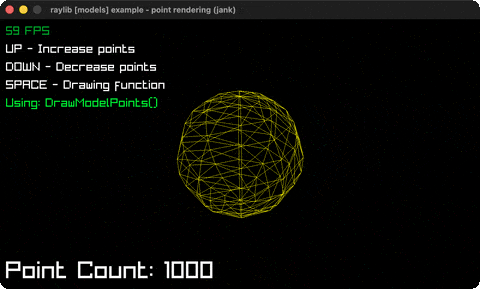

	`point-rendering`	Up to 10 million points: GPU point mode vs per-point draws

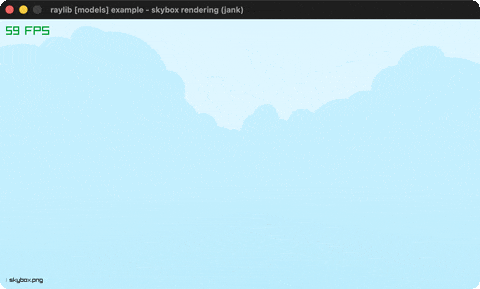

	`skybox-rendering`	A cubemap skybox drawn from inside a unit cube

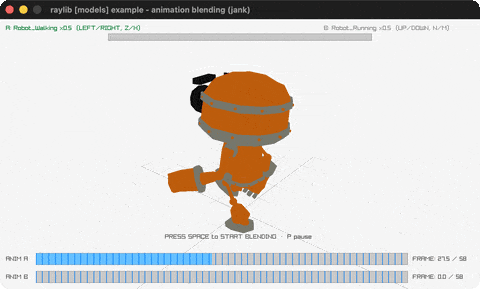

	`animation-blending`	SPACE cross-fades the robot between two animations

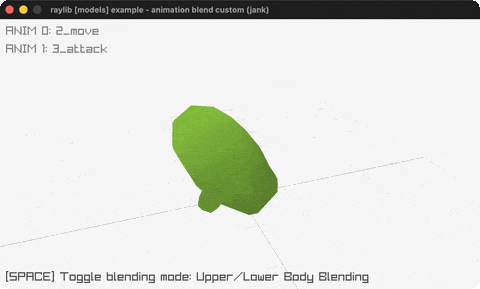

	`animation-blend-custom`	Per-bone blending: walking legs + attacking upper body

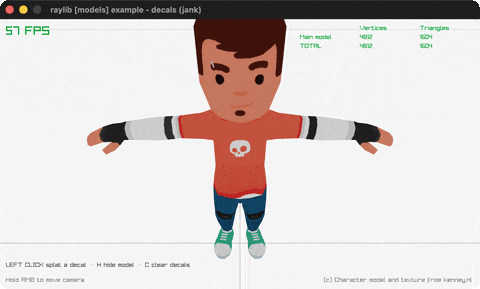

	`decals`	Click to splat logo decals onto a character's surface

shaders: GLSL, uniforms, postprocess, lighting (35)

preview	`bb` name	shows

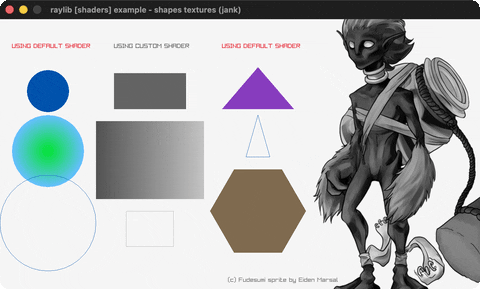

	`shapes-textures-shader`	A grayscale fragment shader over shapes + a sprite

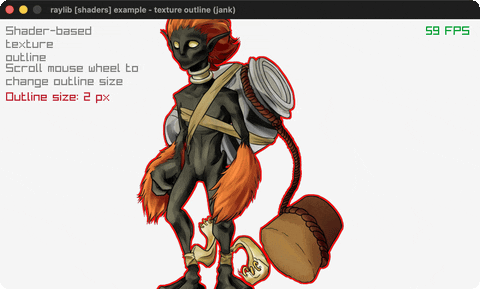

	`texture-outline`	A shader-drawn outline around a sprite
	`texture-waves`	A space texture rippled by an animated wave shader

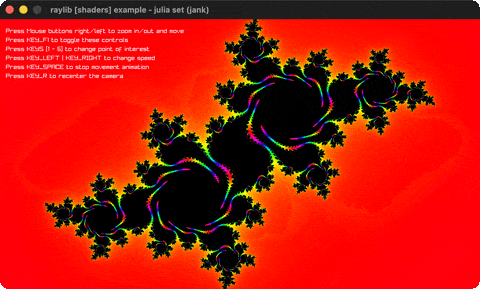

	`julia-set`	A Julia set fractal computed in a fragment shader
	`eratosthenes-sieve`	The Sieve of Eratosthenes per-pixel in a shader

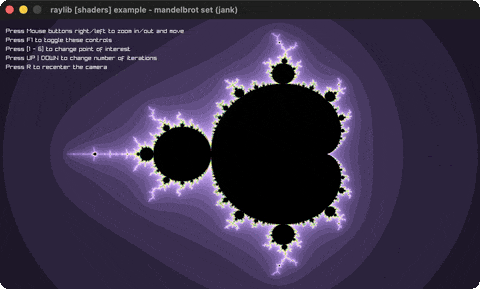

	`mandelbrot-set`	The Mandelbrot set in a shader, deep-zoom presets
	`rounded-rectangle-shader`	SDF rounded rects (fill/shadow/border) in a shader

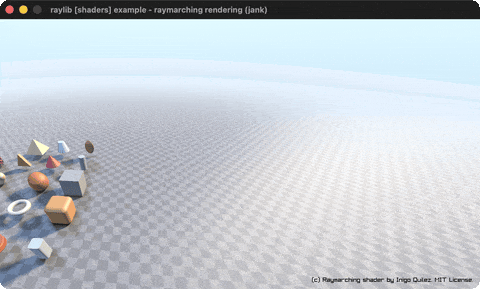

	`raymarching`	A raymarched SDF scene with a first-person fly-cam
	`color-correction`	A shader tuning contrast/saturation/brightness

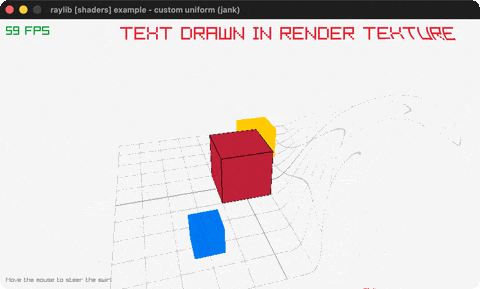

	`custom-uniform`	A mouse-steered swirl over a render-textured scene

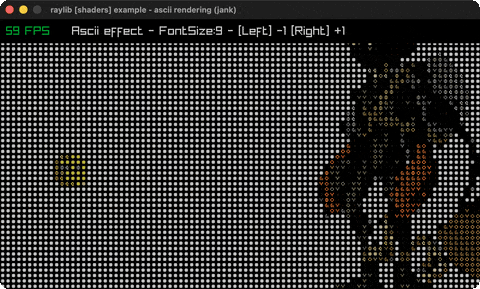

	`ascii-rendering`	A shader re-rendering the scene as ASCII glyphs

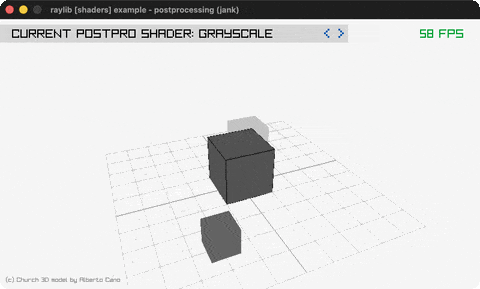

	`postprocessing`	Twelve full-screen post-process shaders, cycled

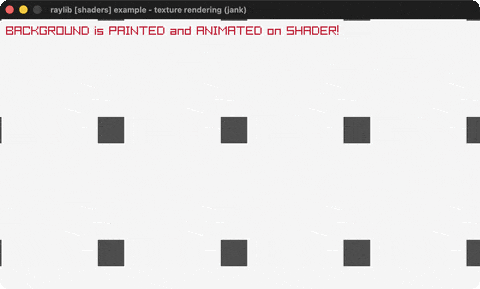

	`texture-rendering`	A blank texture painted entirely by a fragment shader

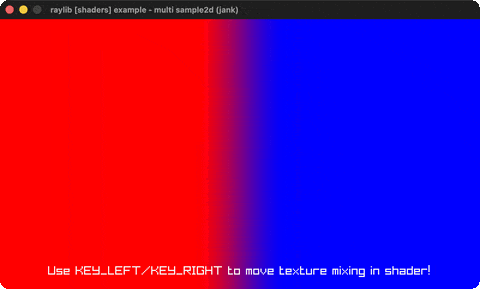

	`multi-sample2d`	Two textures blended in a shader via a second sampler2D

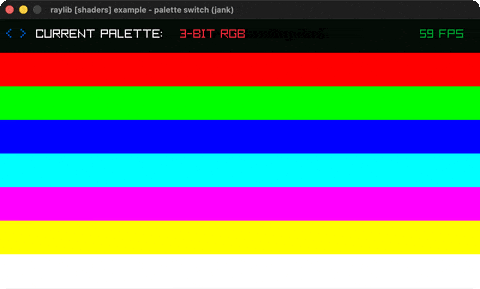

	`palette-switch`	Palette-indexed bands recolored by a shader uniform

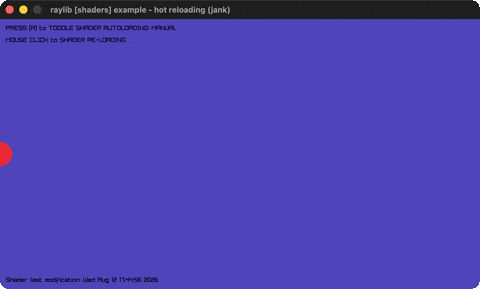

	`hot-reloading`	Hot-swap the reload.fs fragment shader while it runs

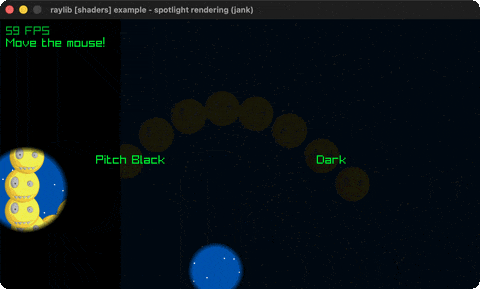

	`spotlight-rendering`	Three spotlights alpha-masked over a sprite swarm

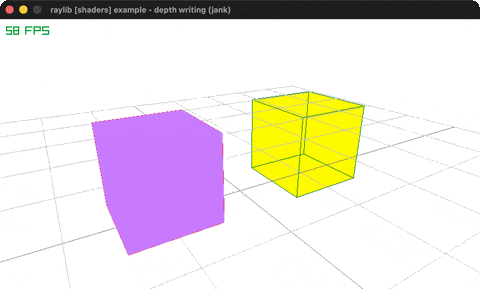

	`depth-writing`	Inverted gl_FragDepth into a custom depth texture

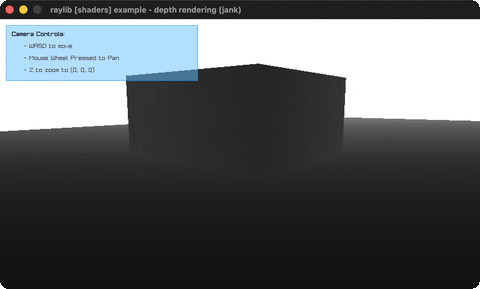

	`depth-rendering`	The scene's depth buffer visualized through a shader

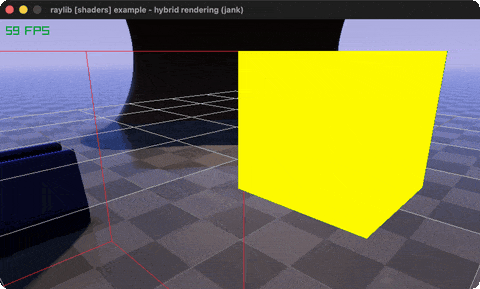

	`hybrid-rendering`	Raymarched spheres + rasterized cubes, depth-tested
	`texture-tiling`	A cube model with its texture tiled 3x3 by a shader

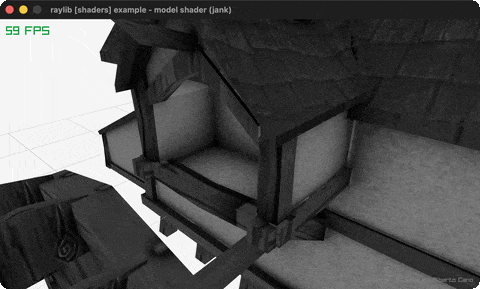

	`model-shader`	The watermill OBJ drawn grayscale by a material shader

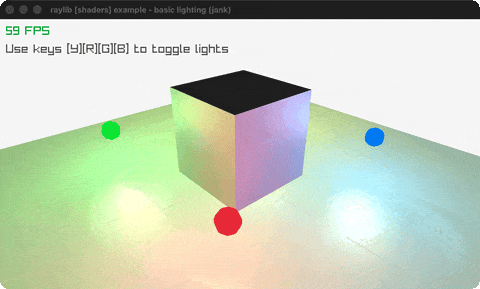

	`basic-lighting`	A plane + cube lit by four toggleable colored point lights

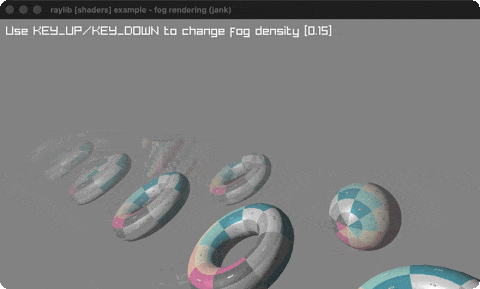

	`fog-rendering`	Torus/cube/sphere models fading into exponential fog

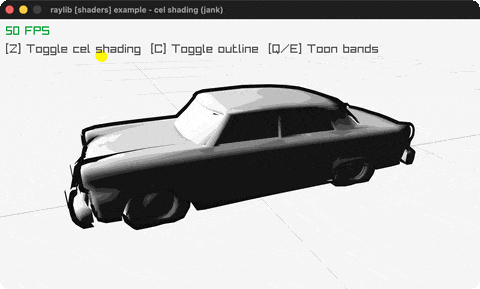

	`cel-shading`	A GLB car toon-shaded with quantized bands + outline

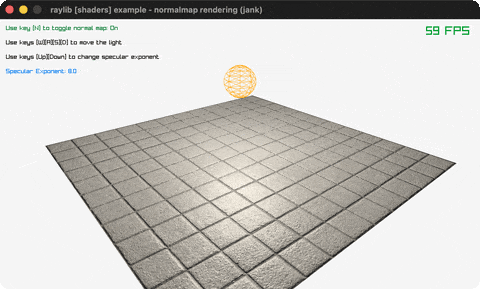

	`normalmap-rendering`	A spinning plane lit through a tangent-space normal map

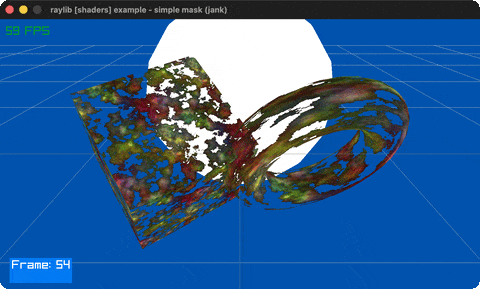

	`simple-mask`	An animated mask eats holes in two models' skin

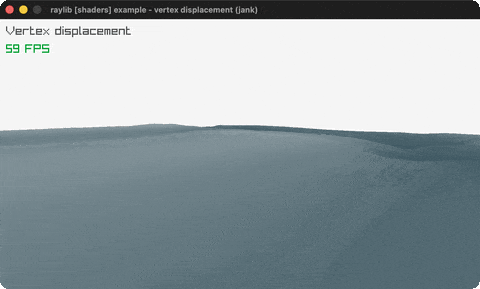

	`vertex-displacement`	A plane mesh riding Perlin-noise waves in the vertex shader
(none)	`rlgl-compute`	Game of Life stepped entirely on the GPU by compute shaders

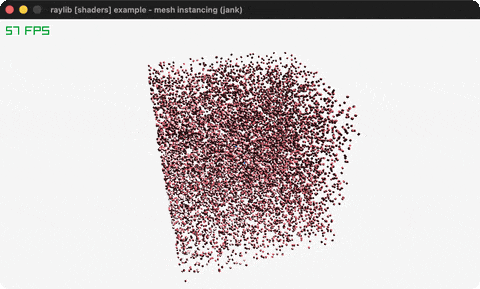

	`mesh-instancing`	Ten thousand lit cubes in one draw call (DrawMeshInstanced)

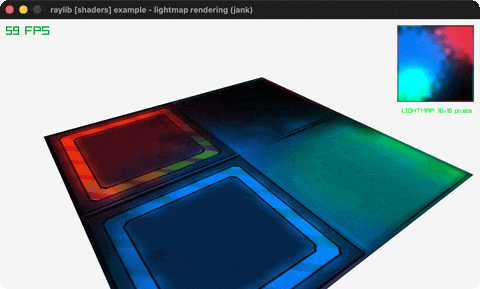

	`lightmap-rendering`	A plane lit by a baked lightmap through a second UV channel
	`shadowmap-rendering`	Real shadows: an animated robot under a shadowmap

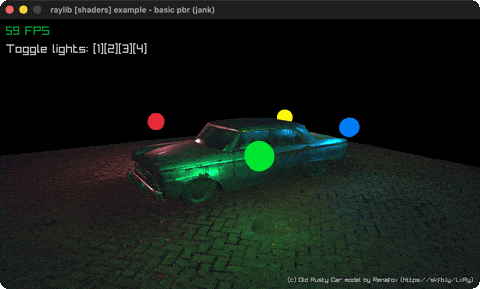

	`basic-pbr`	The rusty car under physically-based rendering (PBR maps)

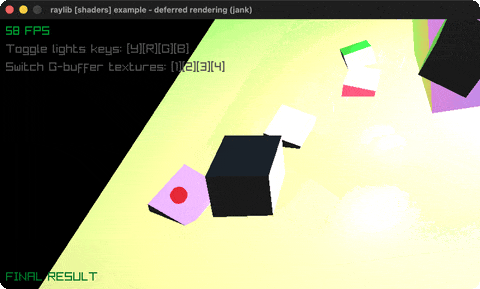

	`deferred-rendering`	A three-target G-buffer + deferred lighting pass

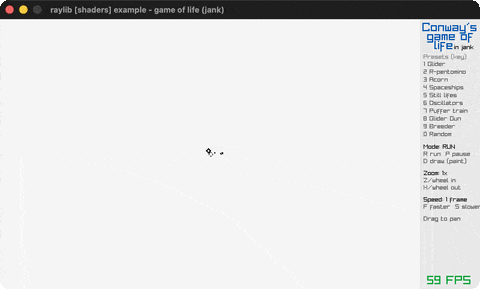

	`game-of-life`	Conway's Life on a 2048x2048 world: pan/zoom, presets

audio: sounds, music streams (11)

preview	`bb` name	shows
	`sound-loading`	Play a WAV and an OGG sound

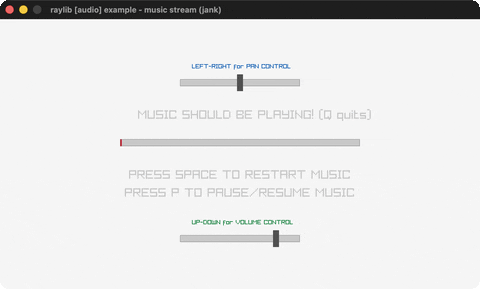

	`music-stream`	Stream an MP3 with pan/volume/progress controls

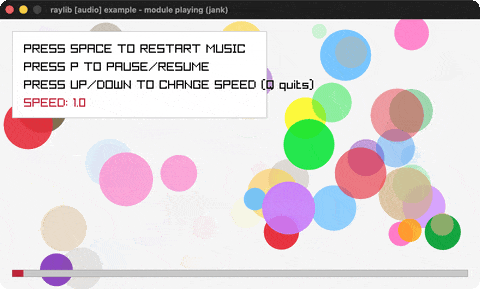

	`module-playing`	A chiptune XM module + pulsing circle waves
	`sound-multi`	Overlapping sound playback via sound aliases

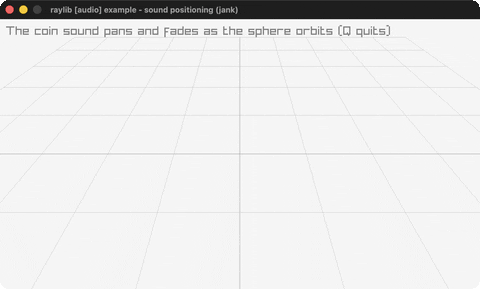

	`sound-positioning`	Spatial audio around an orbiting 3D sphere

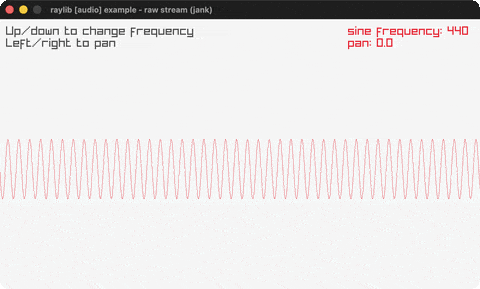

	`raw-stream`	A sine wave generated sample-by-sample into a stream

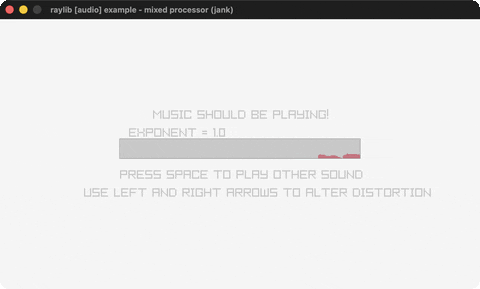

	`mixed-processor`	A DSP distortion callback on the whole audio mix

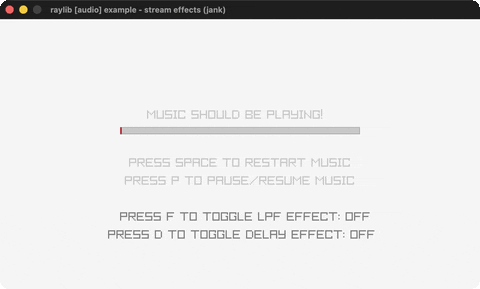

	`stream-effects`	Stackable lowpass + delay effects on one music stream

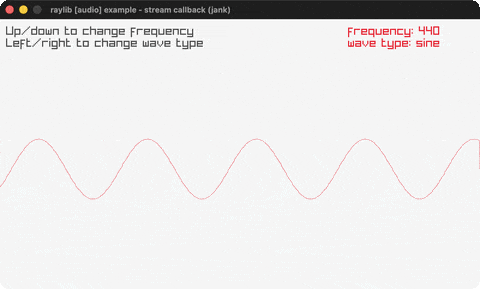

	`stream-callback`	A pull-model synth: sine/square/triangle/sawtooth on demand

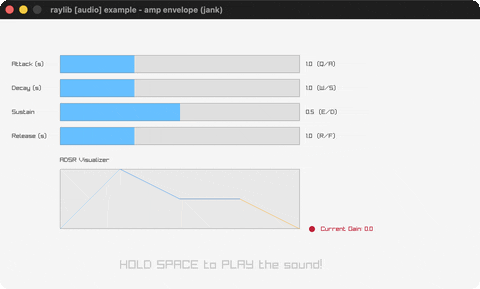

	`amp-envelope`	An ADSR envelope on a tone, with a live shape graph

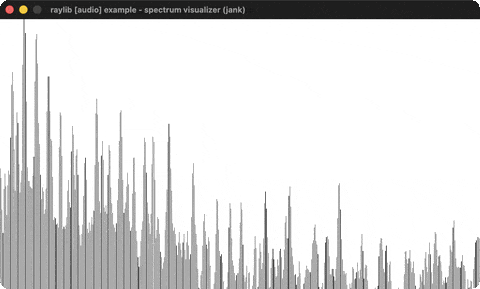

	`spectrum-visualizer`	A live FFT spectrum of the music through a shader

others: embedded data, GL interop, standalone rlgl (1)

preview	`bb` name	shows
(none)	`embedded-files`	A logo and a sound compiled into the binary as C arrays

interop: jank/C++ mechanics (1)

Not raylib ports. These demonstrate the language boundary itself, and are counted separately so the raylib port totals above stay comparable with upstream.

	`bb` name	What it shows

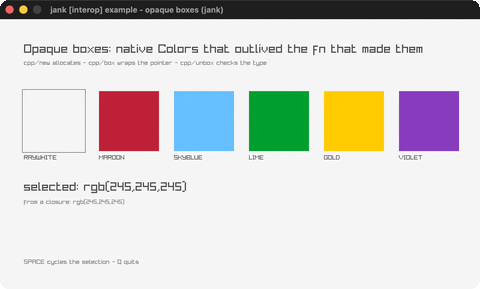

	`opaque-boxes`	Native Colors carried across fns in opaque boxes

Adding an example: the five touchpoints

See porting-workflow.md for the full end-to-end process (source of truth, docstring format, the headless smoke test). The short version is that a new example touches five places in the same commit: raylib-examples/project.clj (a :profiles entry), bb.edn (a bb <name> task), bb/helpers.clj (a row in the examples registry vector, including its :cat), raylib-examples/README.md (move it from the "not yet ported" queue into the ported table), and this file (a row in the right category table, plus its heading count). bb check enforces all five. The repo-root README.md carries no per-example catalog, so it needs no change.
